BruteForce USA

16-24 XL

16-24 XL

Firewood Processor

Machine includes 4-Way Wedge and 3-Strand Live Deck

Please note machines pictured may have options not included in base models. Speak with your sales rep about all possible options.

$56,595.95 USD
$56,595.95 USD
Sale Sold out
Frame Options
Engine Options
Integrated Conveyor

One Year Warranty on All Equipment and Three Year Warranty on Engine from Manufacturer

View full details
  • The 16-24 XL is a mid-sized commercial firewood processor with a 38HP Kohler EFI gas engine and a 3-stage pump that allows the process to output up to 2 cords per hour. The industrial wood processor is capable of processing logs as wide as 24" in diameter and in excess of 32' in length with cycle times low as 5 seconds.

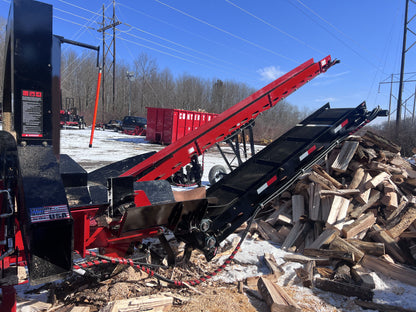

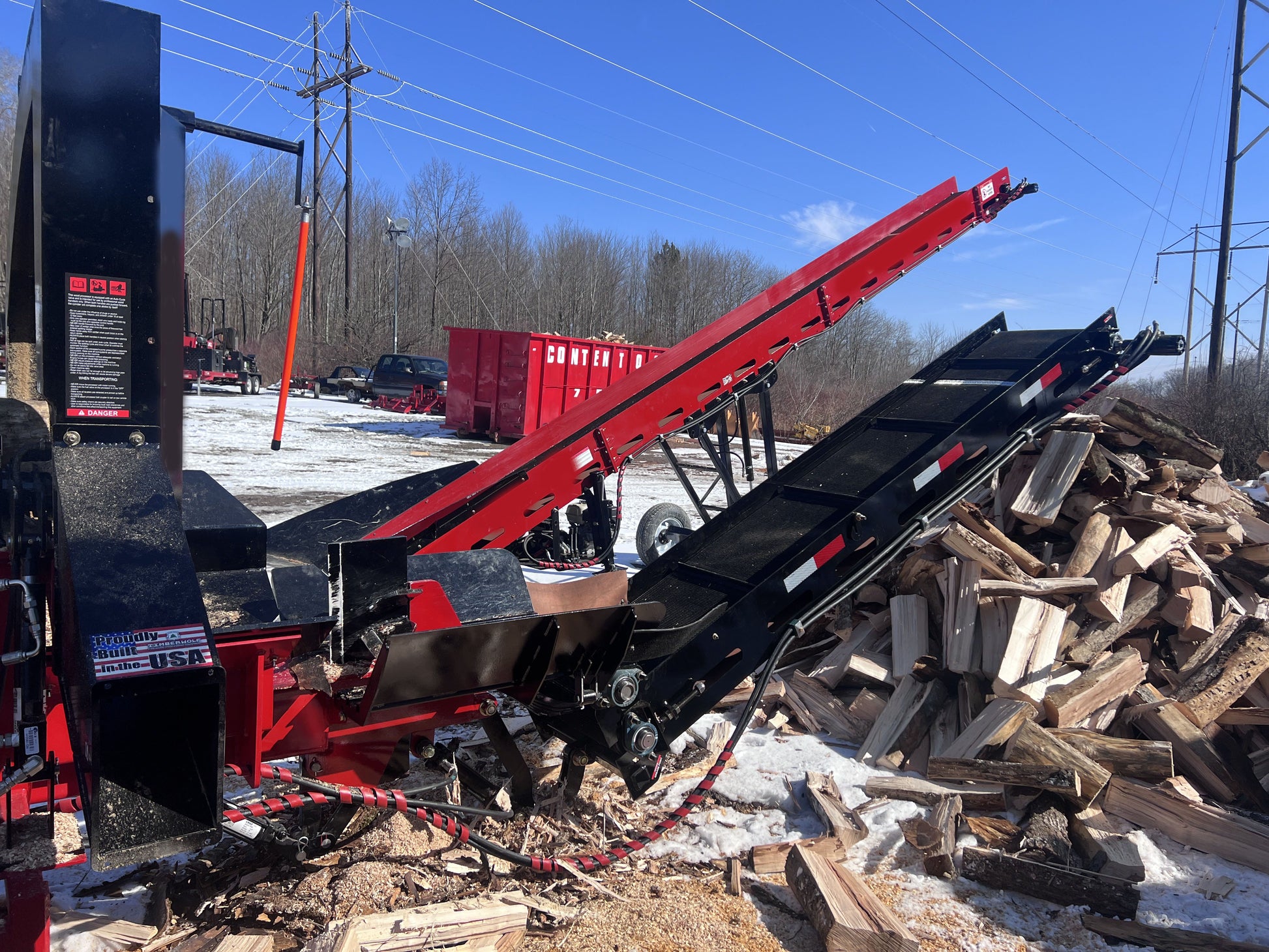

  • The 16-24 XL can be equipped with a 12' long integrated conveyor, which enables operators to easily load cut and split firewood into a truckbed or trailer for transportation. The integrated conveyor uses a hydraulic lift to raise and lower the conveyor, so setting up the firewood processor with a conveyor is simple and not labor-intensive. Unlike other log processors on the market, the 16-24 XL's conveyor folds over the center of the firewood processing machine to ensure secure travel.
  • The firewood processor with conveyor comes standard with a 6' by 12' 3-strand live deck that uses driven roller chains to move logs in excess of 32' in length onto the feed trough. For transportation, the live deck can be raised via a hydraulic lift cylinder and stored upright using the stow bar.
  • The BruteForce USA 16-24 wood processor offers commercial-grade power and speed but weighs in only at 5,500 pounds. The portable firewood processor can be towed by any half-ton truck, so you can take the 16-24 XL to the job site.
  • The 16-24 uses a 38 HP fuel-injected Kohler engine that features an integrated oil cooler which saves on fuel consumption and prolongs the life of the engine.
  • The affordable commercial firewood processor can be equipped with a 4” or 5” hydraulic cylinder. The 4” cylinder will cycle quicker for a greater cord output while the 5” cylinder offers greater splitting fore to bust gnarly logs.
  • The 16-24 XL’s push block cylinder receives a pump flow of 22 GPM, the saw and hydraulic wedge lift receive 18 GPM, and the auxiliary functions - like the optional conveyor - receive 2.6 GPM.
  • The commercial wood processor with a conveyor is equipped with a large 30-gallon hydraulic tank to maintain optimal oil temperature while operating for hours at a time.

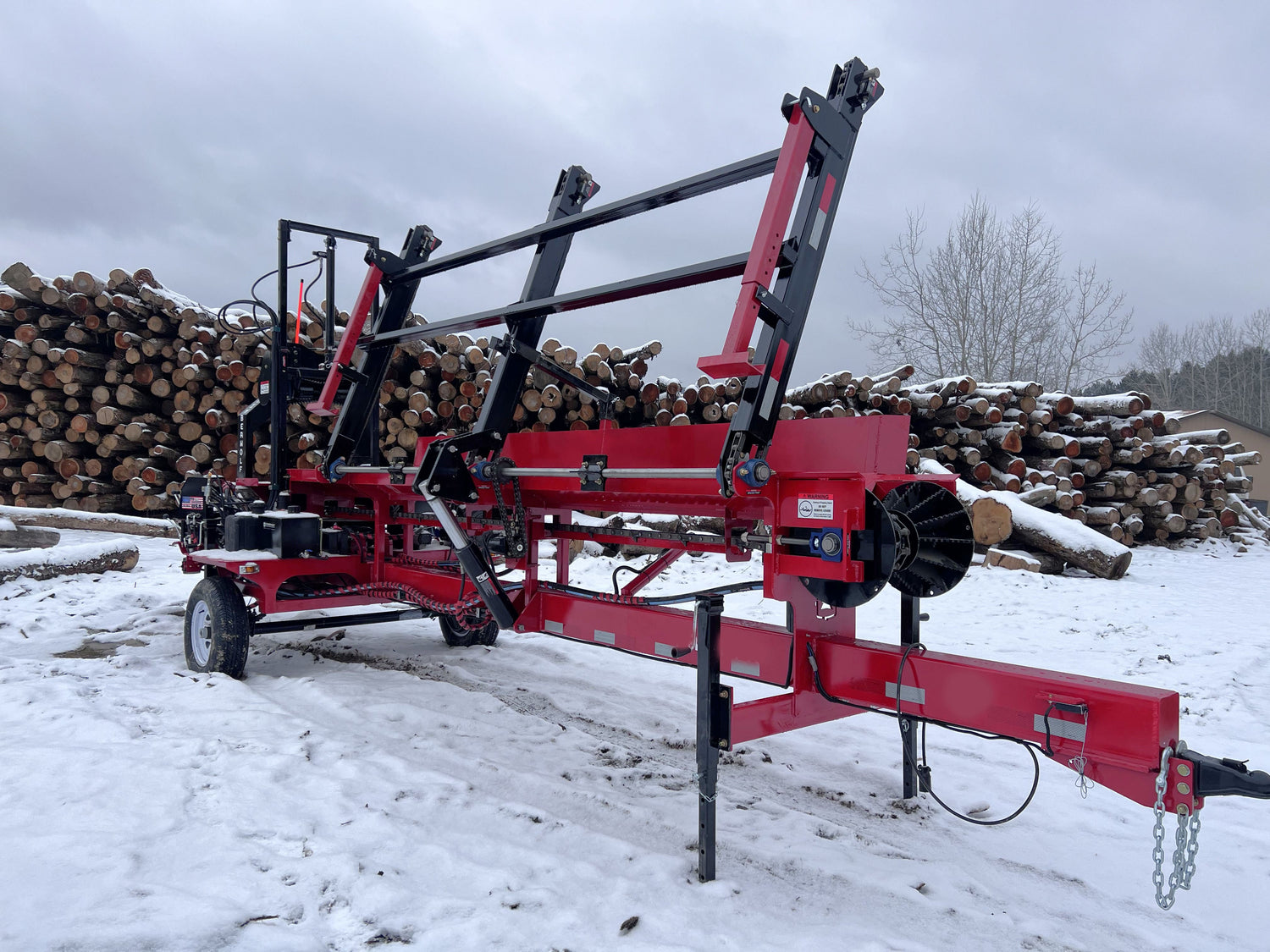

Hydraulic 3-Strand Live Deck

The 16-24 XL has a 6' long by 12' wide 3-stand live deck with a full roller chain, idler, and driven sprockets, so it can guide monster logs onto the 16’ long feed trough with ease. Approximately 2 face cords can rest on the live deck of the mid-sized firewood processor.

The live deck can be raised and lowered using a hydraulic lift cylinder, as well as stored for transportation using the stow bar.

Cut While You Split

Because of the multiple pumps on the 16-24 XL, operators can feed and cut a log while driving the push block to split cut logs.

22 GPM flows to the push block cylinder, 18 GPM flows to the saw and wedge lift, and 2.6 GPM flows to the auxiliary functions of the mid-sized wood processor.

Easy Wedge Adjustments

With the 16-24 XL firewood processor's hydraulic wedge lift operators can raise and lower their 4 or 6-Way Wedge from the operator's panel. This function eliminates the need for operators to manually change the wedge height or change out the wedge altogether.

Plus, operators can move the wedge out of the way when reaching into the splitting chamber in order to handle logs.

  •
    Engine Power (HP) 38
    Pump Flow (GPM) 22-18-2.6
    Stroke (in) 26
    Trough Length (ft) 16
    Max Log Diameter (in) 24
    Max Log Length (ft) 32
    Cycle Time (sec) 5/7
    Splitting Force (ton) 22
    Average Output (Cord/Hr) 2.5
    Weight (lbs) 5,500

  • Standard Features

    • 3-Strand hydraulic live deck
    • 4-way wedge
    • Manual autocycle
    • 30 gallon hydraulic tank
    • Driven top roll clamping system
    • Back roller
    • Saw: 25" cut/.404 chain

  •

    Power

    • Cylinder Options:

    4" bore, 3" rod, 26" stroke

    5" bore, 3.5" rod, 26" stroke

    • 38 HP fuel-injected Kohler engine
  •

    Tow Friendly

    • Equipped with fenders and 2" ball receiver hitch
    • Bring the processor to your workspace
1 4

Dimensions

  • Length: 26-Feet 8-Inches

    Width: 6-Feet 6-Inches

    Height: 10-Feet 8-Inches

    Weight: 5,500 Pounds

    Log Deck Height: 49-Inches
